In the In-Place Text Editor right-click and click Symbol. Google for the picture of 2.
Solved How To Get The Centerline Symbol C L Autodesk Community Autocad
Enter the control code or Unicode string.
Autocad centerline symbol %%. Gian Paolo Cattaneo. As for the delta or change symbol try U0394 in simplex mtext. The code for the centerline symbol is U2104.
Center marks and centerlines are dimensioning references to centers of holes and axes of symmetry. Centerline between two polyline. Among one of the many new features of AutoCAD 2017 was the introduction of Center Mark and Centerline tools.
How to add center-line symbol in AutoCAD texts. Then highlight the mtext with grips and in the Change Properties dialog box change the line spacing to 025. The AutoCAD Centerline tool creates centerline geometry of a specified linetype in association with selected lines and polylines.
Right-click and then select Create to accept the displayed centerline. If you move or modify the associated objects the center marks and centerlines adjust accordingly. Welcome in design hub This series complete all command like line circle command object snap tracking on and off polar tracking arc command modified.
You can include special characters and symbols by entering a control code or a Unicode string. If you move the objects the associated centerlines and center marks update accordingly. The Center Mark tool creates an associative center mark at the center of a selected circle arc or polygonal arc.
10 - 21122013. This command creates a cross-shaped mark at the center of a selected circle or arc shown in the quick video. U00B0 Degrees symbol U00B1 Tolerance symbol U2205 Diameter symbol.
In the graphics window click a feature to start the centerline. Symbols can be inserted in text using one of the following methods. Trust me I feel your pain.
Center marks and centerlines are associative objects. In the MText editor click with your right mouse button and select Symbol Center Line CL. Click a second feature to add the centerline.
Trust me I feel your pain. With the help of these tools its now fairly easy to add a center mark to an arc or a circle you can also add a center line with ease using the center line tool. Copy and paste from the Character Map.
Select copy the item. On the expanded Text Formatting toolbar click Symbol. Text symbols and Unicode strings.
If you use mtext you can right click and select Symbol in the menu and go from there also. Better yet Use this is a more standard way of enter. Adding Symbols to text-2 in AutocadSymbols1.
There is a centerline symbol in the GDTshx font using a lowercase q. Copy and paste from the Character Map. Go to the Paint utility such as Michrosoft Paint and paste the item into it.
CenterPlineLSP. There is a centerline symbol in the GDTshx font using a lowercase q. Make sure you are using a text font containing this unicode glyph.
Then select all copy. Video Player is loading. If you upgrade to 2005 they have a nice new set of symbols for surveyors and civil.

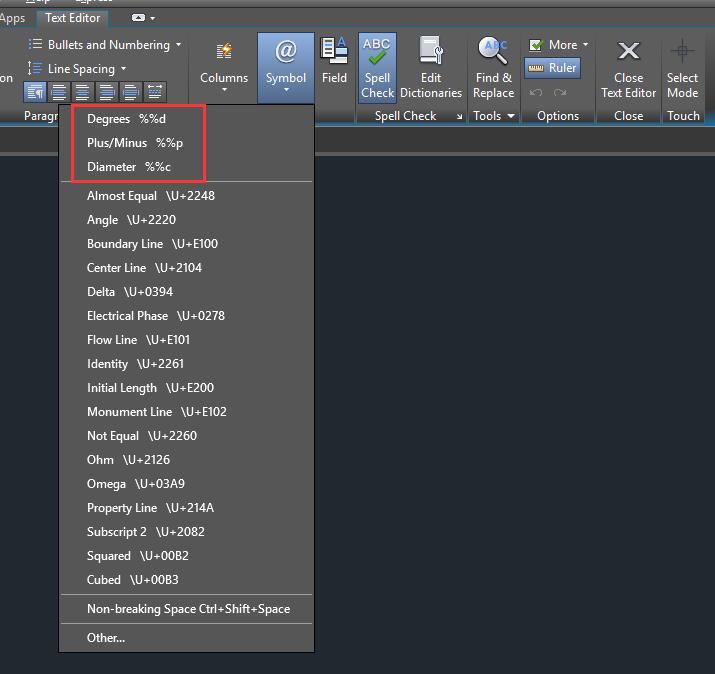

On the ribbon click Annotate tab Symbols panel Centerline. Enter the control code or Unicode string. In the In-Place Text Editor right-click and click Symbol.
Precede the Unicode string. When entering text you can create special characters including the degree symbol plusminus tolerance symbol and the diameter symbol by entering the following Unicode character strings. First type mtext that looks like this.
Subsequently question is how do you show the centerline symbol in Autocad. Text symbols and Unicode strings. Manually add a centerline.
As for the delta or change symbol try U0394 in simplex mtext. Continue selecting features until all desired features are added. You can also type q with the GDT.
Its kind of ugly and kind of small but there it is. I find this an easy way to get any symbol or picture you want into any system Autocad Microsoft Office documents etc. This will produce a centerline symbol in front of the word.
The Center Mark command will put center marks on a circle or arc. If you upgrade to 2005 they have a nice new set of symbols for surveyors and civil. Go to the document you are creating and Paste.
Its kind of ugly and kind of small but there it is. David uses the following tip with AutoCAD 2007 but he believes it should work with any version that allows mtext formatting. Use UpDown Arrow keys to increase or decrease volume.
On the expanded Text Formatting toolbar click Symbol. Precede the Unicode string with a backslash.
